    Power relay











    67 high power relay











    • 67 high power relay
      •














    67 high power relay
    光伏大功率繼電器 50A







    Power relay of photovoltaic inverter


    ? DC coil, only 1700 MW to maintain power


    ? contact clearance ≥ 3mm (in accordance with VDE 0126-1-1, en 62109 - 1, en 62109 - 2)


    ? reinforced insulation between coil and contact


    ? 1.5mm gap between PCB and relay base


    ? suitable for ambient temperature of 85 ° C (with energy-saving coil energized) or 70 ° C (with standard coil energized)








    全國免費咨詢熱線：0755-84552800



























     model

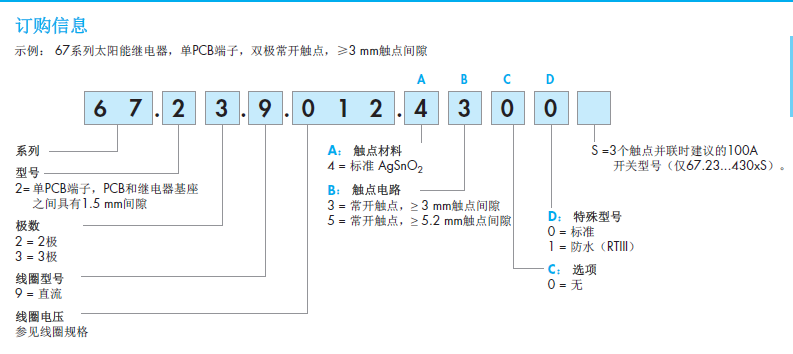

     67.22-x300
     67.23-x300




     Contact specifications




     Contact configuration

    2 NOS (DPST-NO)


    3 NOS (3PST-NO)





     Contact clearance mm
     ≥ 3
     ≥ 3




     Rated current / maximum peak current (for 5 ms) a
     50/150
     50/150




     Rated voltage / maximum switching voltage V AC
     400/690
     400/690




     Rated load ac1/ac7a (each pole) VA
     twenty thousand
     twenty thousand




     Rated load ac15 (each pole @ 230 V AC) VA
     two thousand and three hundred
     two thousand and three hundred




     Single phase motor rating (230 V AC) kw
     two point two
     two point two




     Three phase motor rating (480 V AC) kw
     —
     eleven




     Breaking capacity dc1: 24/110/220 V A
     50/4/1
     50/4/1




     Minimum switching load MW (v/ma)
     1000（10/10）
     1000（10/10）




     Standard contact material
     AgSnO?
     AgSnO?




     Coil specification





    Nominal voltage (UN) V DC

     5 - 6 - 8 - 12 - 24 - 48 - 60 - 110




     Rated power W
     one point seven
     3.6/1.7




     Operating range (– 40... 70) ° C DC
     (0.90 …1.1)UN
     one point seven




     Energy saving mode (– 40... 85) ° C
     Applicable to the operating range of 1 second
     (0.95…2.5)UN
     (0.95…2.5)UN




     Normal range of voltage to be maintained DC
     (0.32…0.65)UN
     (0.32…0.65)UN




     Minimum holding power W
     zero point one seven
     zero point one seven




     Required voltage ac/dc
     0.05 UN
     0.05 UN
