    PCB Relay











    45 miniature PCB Relay











    • 45 miniature PCB Relay
      •














    45 miniature PCB Relay
    微型PCB繼電器 16A







    Miniature PCB Relay
    ·DC sensitive coil: 360MW


    ·The relay can be used at 105/125 ° C


    ·Contact gap ≥ 3mm according to en 60730


    · 8mm、6 kv(1.2/50 μ s) Isolation, coil contact


    ·PCB assembly Faston 250 contact connection








    全國免費咨詢熱線：0755-84552800

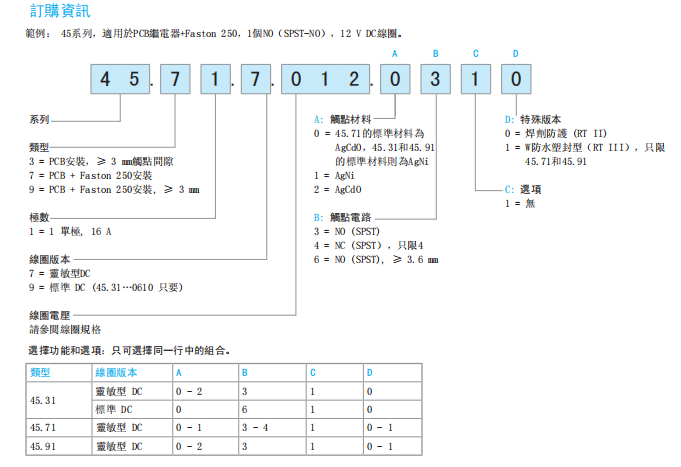

     model

     45.31…x310
     45.31…0610




     Contact specifications




     Contact configuration
     1 no (SPST-NO) ≥ 3mm gap
     1 no (SPST-NO) ≥ 3.6 mm gap




     Rated current / maximum peak current a
     16/30
     10/30




     Rated voltage / maximum switching voltage V AC
     250/400
     500/500




     Rated load AC1 VA
     four thousand
     five thousand




     Rated load ac15 (230 V AC) VA
     seven hundred and fifty
     seven hundred and fifty




     Single phase motor rating (230 V AC) kw
     zero point five five
     zero point five five




     Breaking capacity dc1:30/110/220 V A
     16/4/1
     10/4/1




     Minimum switching load MW (v/ma)
     500 (10/5)
     500 (10/5)




     Standard contact material
     AgNi
     AgNi




     Coil specification




     Nominal voltage (UN)
     V AC (50/60 Hz)
     —
     —




     V DC
     6 - 12 - 24 - 48 - 60
     6 - 12 - 24 - 48 - 60




     Rated power ac/dc VA (50 Hz) /w/w
     —/0.36
     —/0.55




     Operating range
     AC
     —
     —




     DC
     (0.7…1.2)UN
     (0.8…1.2)UN




     Holding voltage ac/dc
     —/0.4 UN
     —/0.4 UN




     Required voltage ac/dc
     —/0.1 UN
     —/0.1 UN
